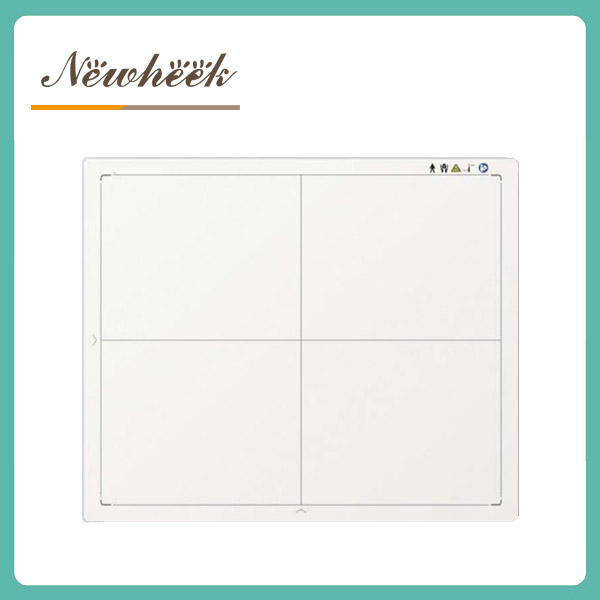

Newheek M1417VⅡ X-ray Plate (DR Detector)
1. Product Overview
The
Newheek M1417VⅡ is a portable, high-performance amorphous silicon (A-Si) flat-panel X-ray detector designed for medical DR retrofits and new system applications. Built with CsI or GOS scintillator options, it delivers reliable, high-quality imaging while supporting low-dose workflows. With a lightweight design, stable wireless connectivity, and long-lasting battery life, it has become a trusted standard for flexible and efficient radiography.
2. Core Features & Benefits
- Low-dose high-quality imaging: The advanced scintillator technology produces clear, detailed images even at reduced radiation doses, supporting safer clinical workflows.
- Wireless & flexible operation: Stable WiFi connection (IEEE 802.11n) enables cordless use across diverse X-ray systems, making it easy to share between rooms or departments.
- Fast image preview & processing: Preview images in 3 seconds and full images in just 7 seconds, speeding up workflow efficiency.
- Reliable synchronization & control: Supports iSync+, AED, software, and inner trigger modes, ensuring seamless integration with different X-ray equipment.
- Portable & lightweight: At just 3.5–3.6 kg (without battery), the slim 15.2 mm profile and compact dimensions make it easy to handle and install.
- Long battery life: Delivers 3.5 hours of continuous use on a single charge, with backup cable charging available for uninterrupted operation.
3. Key Technical Specifications
| Parameter |
Details |
| Detector Technology |
Amorphous Silicon (A-Si) |
| Scintillator |
CsI or GOS |
| Active Area |
345.6 × 420 mm |
| Pixel Pitch |
150 μm |
| Pixel Matrix |
2304 × 2800 |
| Spatial Resolution |
3.4 lp/mm |
| AD Conversion |
14-bit |
| Preview Time |
3 seconds |
| Full Image Time |
7 seconds |
| Wireless Interface |
WiFi (IEEE 802.11n) |
| Internal Storage |
200 images |
| Battery Life |
3.5 hours |
| Charging Time |
≤ 2.5 hours |
| Operating Temperature |
10–35℃ |
| Dimensions |
460 × 384 × 15.2 mm |
| Weight |
3.5 kg (GOS) / 3.6 kg (CsI) (without battery) |
| Power Consumption |
14 W |
4. Common Applications
The M1417VⅡ is ideal for:
- DR retrofits of existing analog or computed radiography (CR) systems
- New digital radiography system installations
- Multi-room or multi-clinic shared use, thanks to its wireless and portable design
- Medical imaging applications where low-dose radiation and fast workflow are priorities
5. Why Choose the Newheek M1417VⅡ?
This detector balances image quality, flexibility, and durability to meet the demands of modern radiography. Its low-dose performance, fast processing, and easy integration make it a cost-effective choice for upgrading imaging capabilities without compromising on clinical accuracy.
Author：Newheek-Detector
