Newheek 5KW Portable X-Ray Machine with M1417VⅡ DR Detector
1. Complete Mobile Radiography System Overview
The
Newheek 5KW Portable X-Ray Machine paired with the M1417VⅡ Wireless X-ray Plate forms a fully integrated, high-performance digital radiography (DR) system designed for mobile and multi-location imaging needs. Combining a compact, high-frequency X-ray generator with a lightweight, low-dose flat-panel detector, this solution delivers reliable, high-quality images anywhere from clinics to field sites.

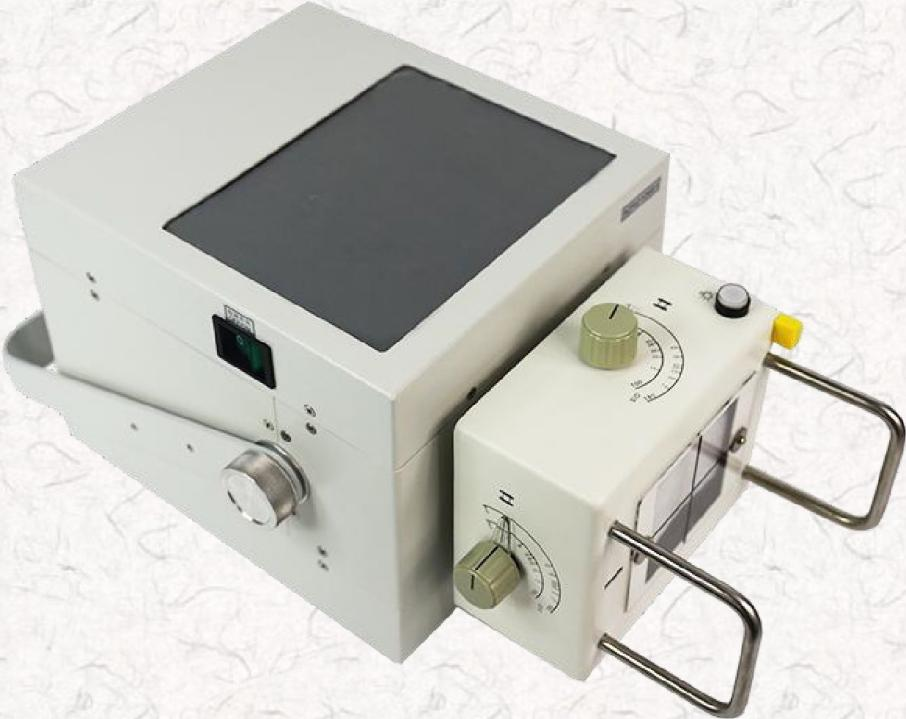

2. Key Features of the 5KW Portable X-Ray Machine
- High-frequency inverter technology: Produces stable high-voltage output, ensuring consistent image quality and reducing exposure times.
- Compact & portable design: At just 21KG, the 37×26×23cm generator is easy to transport and deploy in different locations.
- Flexible exposure control: Supports three trigger methods—remote control, hand switch, and interface button—for safe and convenient operation.
- Built-in safety & diagnostics: Fault self-diagnosis and protection mechanisms enhance reliability and reduce downtime.
- Open digital interface: Compatible with different DR detectors, including the M1417VⅡ, making integration simple and future-proof.
3. M1417VⅡ DR Detector: The Perfect Imaging Partner
- Low-dose high-resolution performance: With a CsI/GOS scintillator and 14-bit A-Si sensor, it produces sharp 1024×1024 equivalent images at low radiation doses.
- Fast wireless workflow: IEEE 802.11n WiFi connection enables instant image transfer, with preview in 3 seconds and full image in 7 seconds.
- Lightweight & durable: At only 3.5–3.6KG (without battery), its slim 15.2mm profile is easy to position and use in tight spaces.
- Long battery life: 3.5 hours of continuous use per charge, with backup cable charging for uninterrupted work.
- Multi-system compatibility: Can be shared across multiple X-ray units, making it ideal for mobile or multi-room setups.
4. Why This System Works So Well Together
The pairing of the 5KW generator and M1417VⅡ detector creates a seamless, efficient workflow:
- The generator’s stable output matches the detector’s high sensitivity, resulting in clear images even at lower exposure settings.
- The open digital interface of the X-ray machine connects directly with the detector’s wireless system, eliminating the need for complex integration.
- Both units are designed for portability, making the entire system easy to move between locations while maintaining consistent image quality.
5. Technical Specifications
| Component |
Details |
| X-Ray Machine |
|
| Maximum Power |
5KW |
| KV Range |
40–110KV |
| mA Range |
32–100mA |
| Exposure Time |
0.01–6.3s |
| Working Frequency |
≥30kHz |
| Input Power |
220V±10%, 50/60Hz |
| Weight |
21KG |
| DR Detector |
|
| Detector Technology |
Amorphous Silicon (A-Si) |
| Scintillator |
CsI / GOS |
| Resolution |
2304×2800 pixels |
| Spatial Resolution |
3.4 lp/mm |
| Wireless |
IEEE 802.11n WiFi |
| Preview Time |
3s |
| Full Image Time |
7s |
| Weight |
3.5–3.6KG (without battery) |
6. Common Applications
This integrated system is ideal for:
- Mobile radiography in clinics, nursing homes, and home care settings
- Field imaging and disaster response scenarios
- Multi-room clinics needing a shared, portable DR solution
- Retrofit projects upgrading existing analog portable X-ray machines to digital
7. Final Benefits
The Newheek 5KW Portable X-Ray Machine with M1417VⅡ DR Detector offers a cost-effective, reliable way to add high-quality digital radiography capabilities to any setting. With low-dose performance, fast workflow, and easy portability, it is a practical choice for modern mobile imaging needs.
Author：Newheek-Detector
